• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor

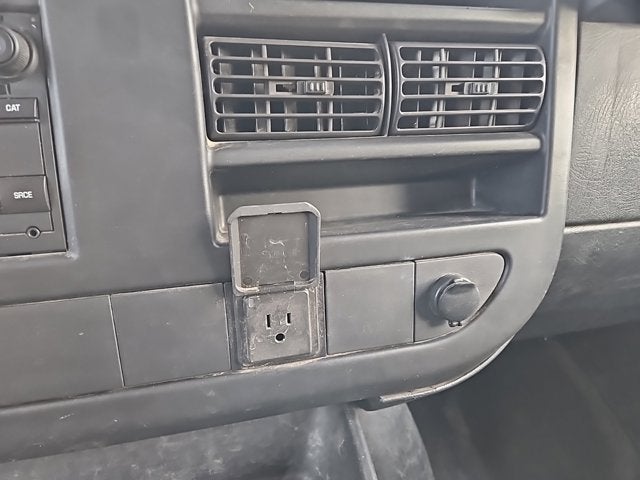

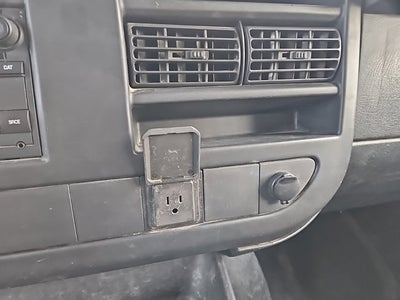

• Power outlet, 120-volt
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• Incomplete vehicle certification
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Daytime Running Lamps
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.

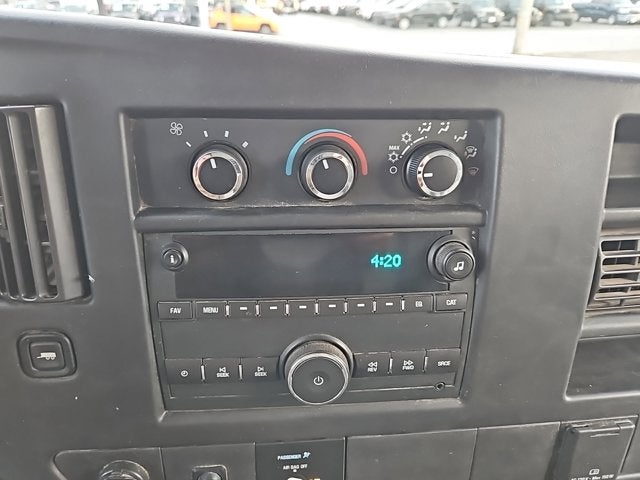

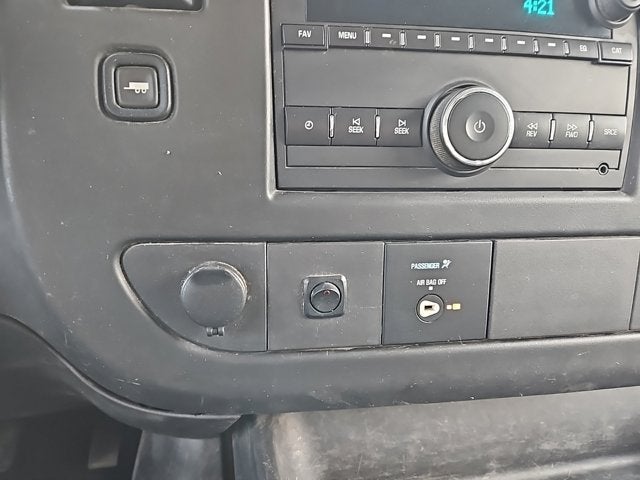

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

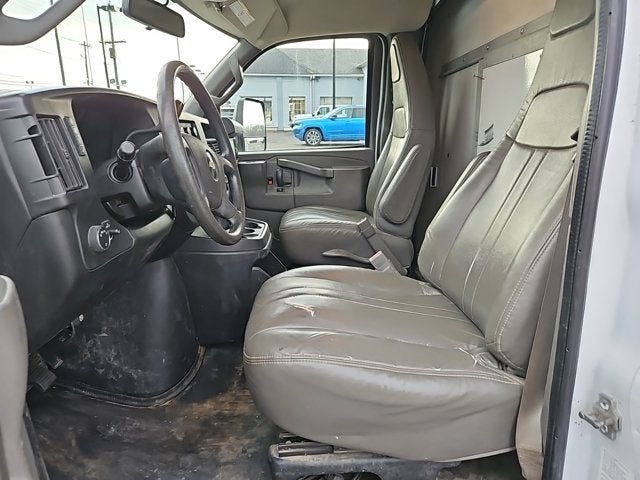

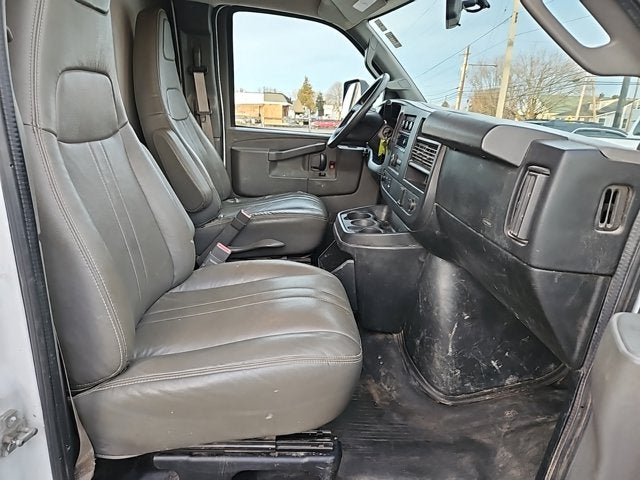

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

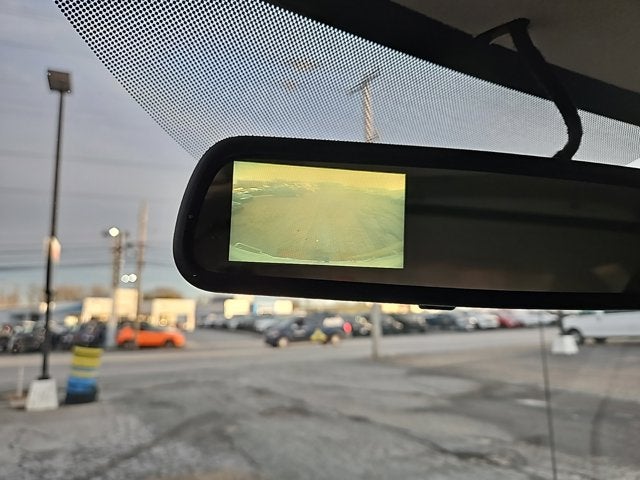

REAR VISION CAMERA

• camera and cable shipped loose Display integrated into navigation screen when (UI8) Chevrolet MyLink radio with Navigation is ordered.)

DOOR LOCKS, POWER

• with lock-out protection

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

ENGINE, VORTEC 6.0L V8

• (342 hp [255.0 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external oil cooler.

BODY, STANDARD

• (STD)

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration.

CONVENIENCE PACKAGE, POWER WINDOWS AND DOOR LOCKS

• (Includes (A31) power windows and (AU3) power door locks.

• MIRROR INSIDE REARVIEW

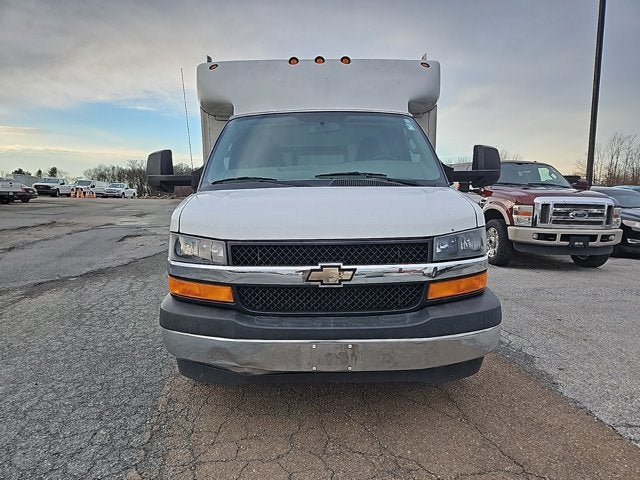

• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• MEDIUM PEWTER VINYL SEAT TRIM
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• REAR VISION CAMERA camera and cable shipped loose Display integrated into navigation screen when (UI8) Chevrolet MyLink radio with Navigation is ordered.)
• BUMPER FRONT CHROME WITH STEP-PAD
• DOOR LOCKS POWER with lock-out protection
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• ENGINE VORTEC 6.0L V8 (342 hp [255.0 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external oil cooler.
• REAR AXLE 3.73 RATIO
• WHEELS 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY

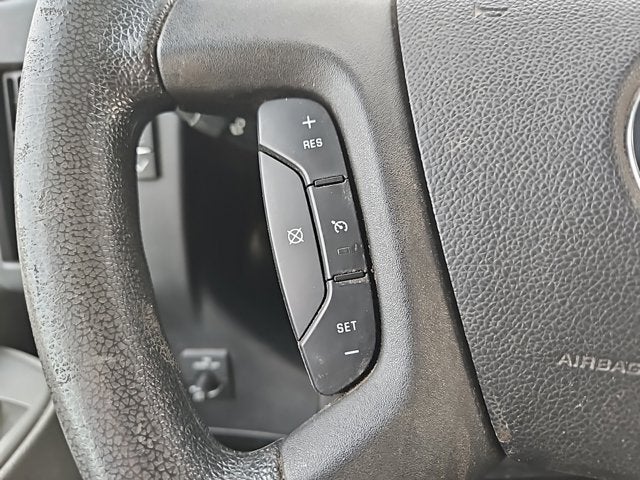

• CRUISE CONTROL
• BODY STANDARD (STD)
• TIRES FRONT LT225/75R16E ALL-SEASON BLACKWALL
• TIRES REAR LT225/75R16E ALL-SEASON BLACKWALL

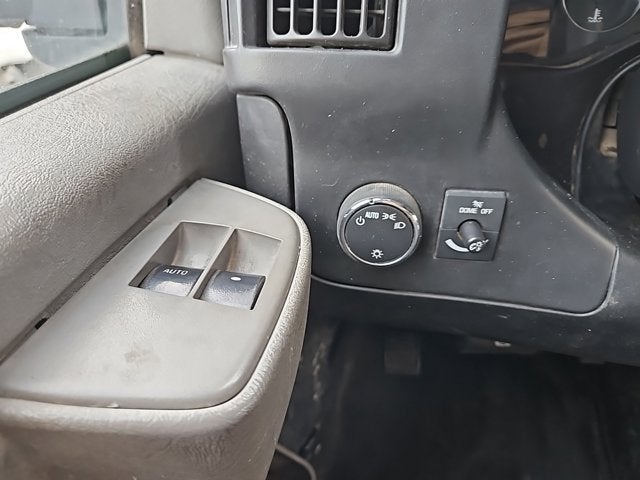

• WINDOWS POWER
• GVWR 12 300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration.
• SUMMIT WHITE

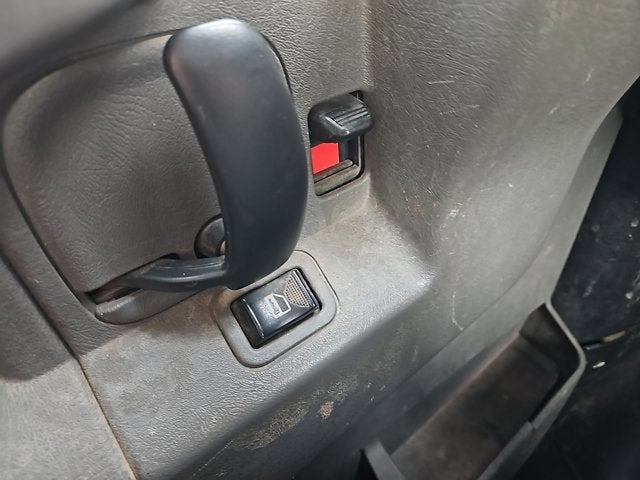

• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS (Includes (A31) power windows and (AU3) power door locks.
• WHEEL CONFIGURATION REAR DUAL
• GRILLE CHROME WITH DUAL COMPOSITE HALOGEN HEADLAMPS
• PAINT SOLID
• CONVENIENCE PACKAGE TILT-WHEEL AND (K34) CRUISE CONTROL
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• A/C
• Vinyl Seats
• Bucket Seats
• Power Outlet
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: N/A
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.50
• Frame Width, Rear (in): 34.80
• Front Bumper to Back of Cab (in): 98.70
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 6.80
• Ground to Top of Frame (in): 23.31
• Height, Overall (in): 82.90
• Length, Overall w/o rear bumper (in): 246.70
• Overhang, Front (in): 39.70
• Wheelbase (in): 139.00
• Width, Max w/o mirrors (in): 94.53
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 139.0" WB

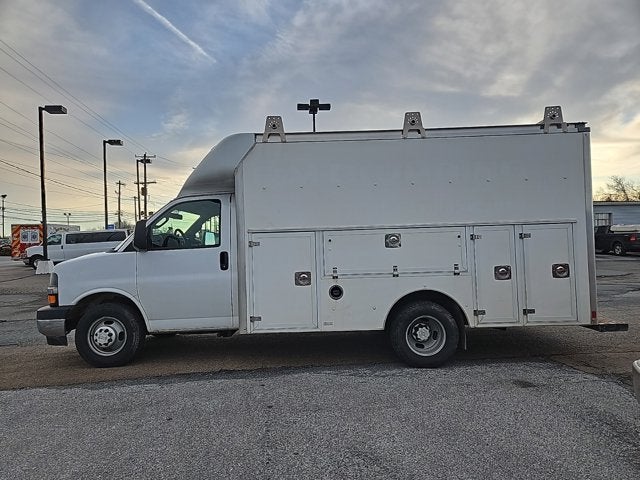

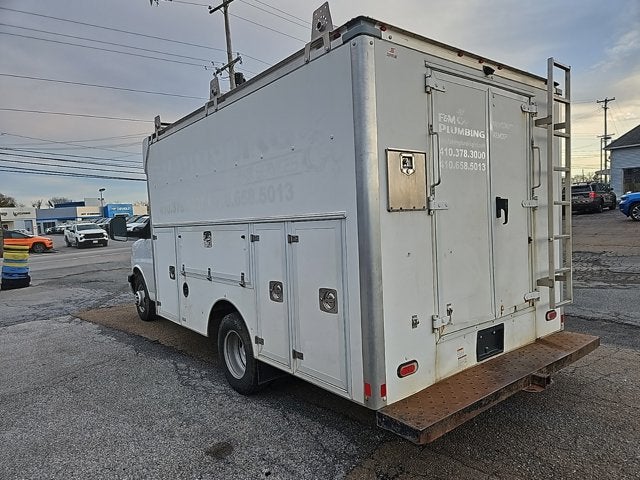

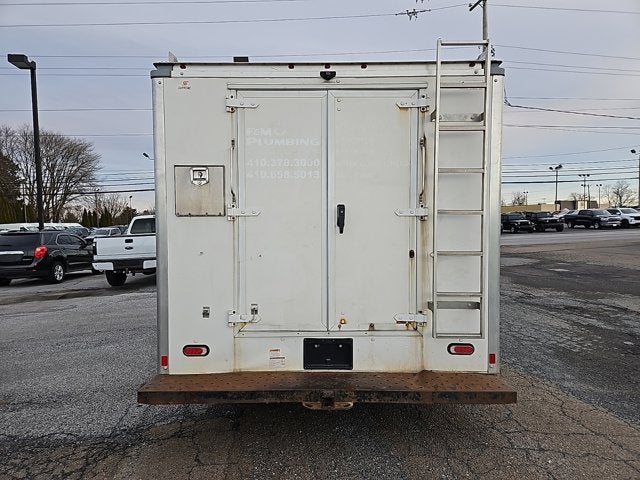

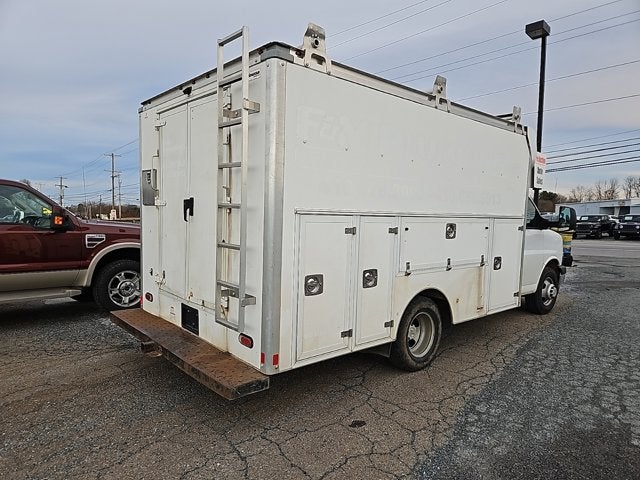

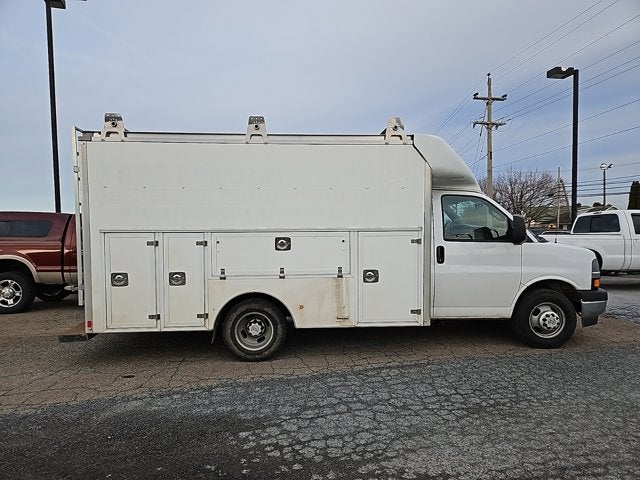

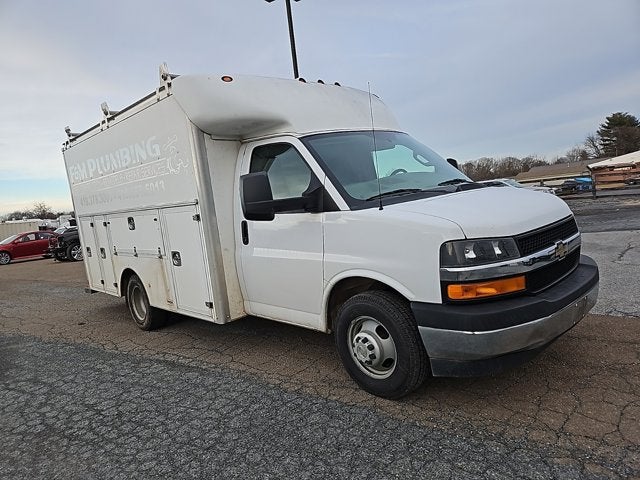

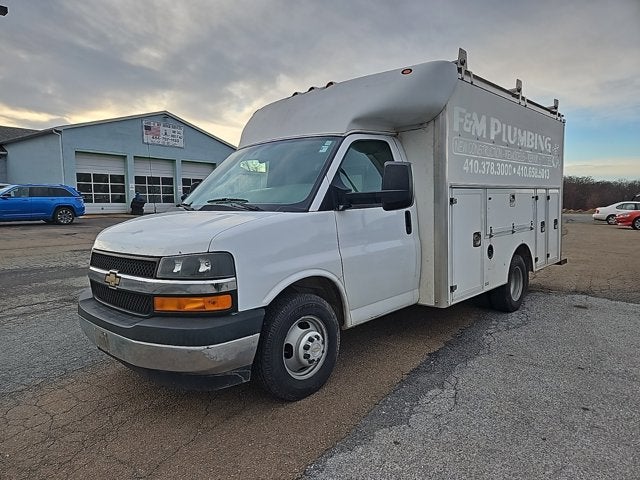

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 8600
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 8600
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2335
• Front Tire Order Code: XHF
• Front Tire Size: LT225/75R16E
• Rear Tire Capacity (lbs): 2150
• Rear Tire Order Code: YHF
• Rear Tire Size: LT225/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 2993
• Curb Weight - Rear (lbs): 1503
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 8600
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
